No-Start Diagnosis: Batteries, Alternator & Starter Issues
July 25, 2026 · PartsNow Guides
Nothing ruins a morning like a truck that won't crank. The temptation is to slap in a new battery and hope, but that's a good way to spend money without fixing the actual problem. A no-start is almost always one of four things: a weak battery, a bad ground, a starter drawing too much current, or an alternator that quit charging days ago and nobody noticed.
The good news is you don't need a shop full of equipment to run this down. A decent multimeter, a load tester, and twenty minutes of methodical checking will tell you exactly what's wrong. Guess-and-replace costs more in parts and downtime than doing it right the first time.
This guide walks through the diagnostic order that actually works — batteries first, then grounds, then charging system, then starter draw — plus what cold weather does to every one of these tests.
Start With the Batteries, Not the Starter

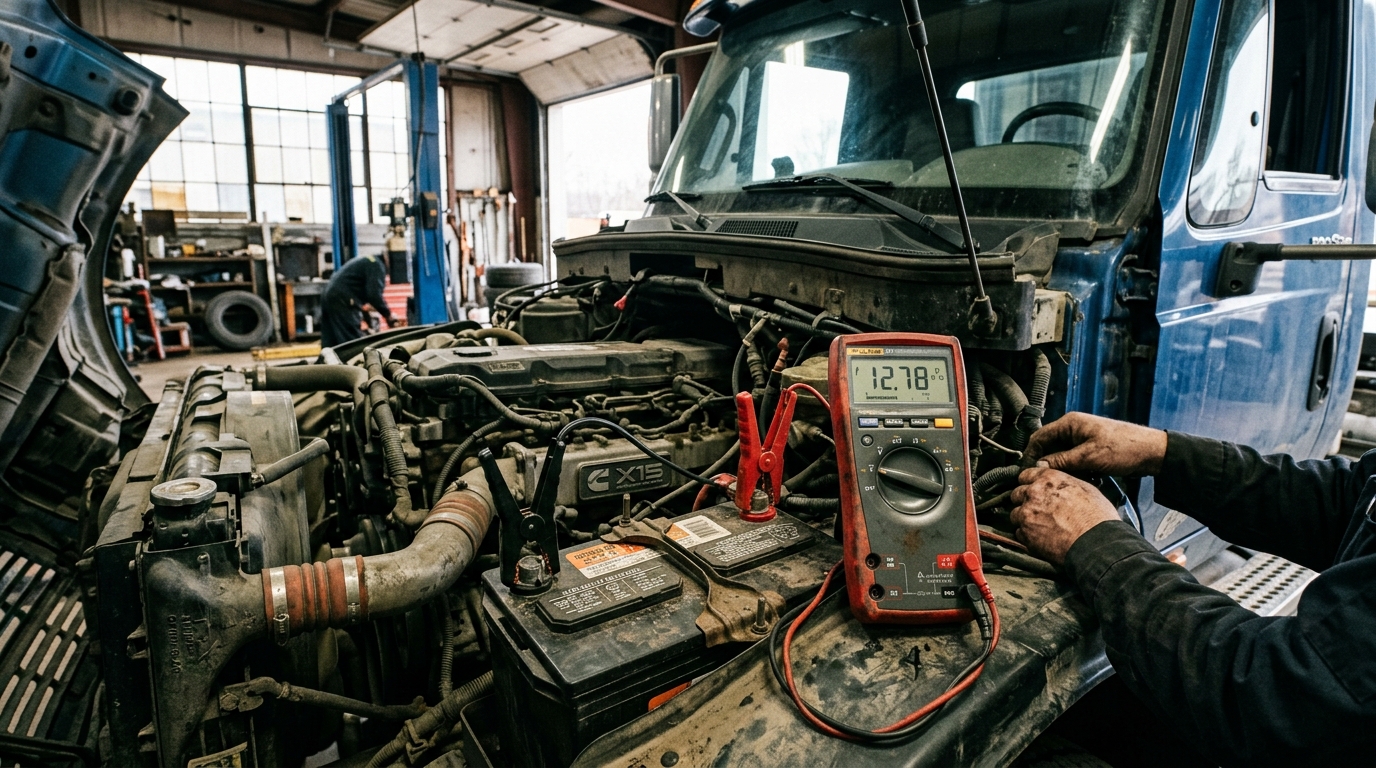

Before you touch anything electrical, check battery voltage at rest with a multimeter. A fully charged 12V battery should read around 12.6V; anything under 12.4V means it's not fully charged, and under 12V usually means trouble cranking.
Don't stop at voltage — that only tells you state of charge, not health. Run a load test (or capacity test if you've got a conductance tester) on each battery individually. A battery can show 12.6V resting and still fail under load because the plates are sulfated or a cell is dying.
Check the terminals and posts for corrosion, and make sure cables are torqued per OEM spec. A loose or corroded connection can mimic a dead battery and fool you into replacing good batteries. On dual-battery setups, isolate each one — one bad battery in the pair drags the other down and shortens both their lives.
Check Your Grounds Before You Blame Electronics
A weak or corroded ground strap causes more mystery no-starts than any other single component, and it's the thing techs skip most often.
Check the ground from the battery negative to the frame, and from the frame to the engine block. Voltage drop testing is the right way to do this — with the engine cranking (or trying to), a good ground should show less than about 0.2V drop. Anything higher means resistance in that connection, and resistance means the starter isn't getting full power even if the battery is perfect.
Clean grounds with a wire brush down to bare metal, reattach, and retest. This is a five-minute check that saves hours of chasing electrical gremlins. If you've got aftermarket lights, inverters, or a APU pulling off the same ground points, inspect those connections too — they corrode just like factory ones.
Test Alternator Output Under Load
A battery that's constantly low isn't always a bad battery — it might be a charging system that stopped doing its job weeks ago.
With the engine running, check voltage at the battery terminals. You want to see roughly 13.8–14.7V (per OEM spec for your alternator), confirming the alternator is actually charging. If it's sitting at 12.6V with the engine running, it's not charging at all.
Now load it up — headlights, HVAC blower, marker lights — and watch the voltage. A healthy alternator holds steady under load. If voltage drops noticeably or the belt is glazed/slipping, that's your answer. Also check the alternator's own ground and B+ connection for corrosion, since a bad connection there looks identical to a bad alternator from the driver's seat.
Starter Draw and Cranking Amps
If batteries are good, grounds are clean, and the alternator checks out, it's time to look at the starter itself.
An amp clamp during cranking tells the story. Excessive current draw usually points to a worn starter with bad bushings, brush issues, or a solenoid that's arcing internally. Low or no draw with a click but no crank often means a bad solenoid contact or a starter that's just done.
Listen while someone cranks it — a single solenoid click with no spin usually isn't the battery, it's the starter or a main power connection at the starter itself. Also check the starter's own ground and positive cable for heat damage or corrosion; these cables carry huge current and a bad one will get warm to the touch fast, which is a giveaway.
Cold Weather Changes the Rules
Cold temperatures punish weak batteries and hide problems that don't show up in summer.
Battery capacity drops significantly in freezing temps — a battery that cranked fine in August can fail in January even with no other changes, because cold electrolyte just can't deliver current as fast. This is why CCA (cold cranking amp) rating matters more than resting voltage in winter diagnosis.
Thicker engine oil also increases cranking resistance, so a marginal starter that limped through summer may not have enough left in cold conditions. If you're diagnosing a cold-weather no-start, test everything at operating temperature if possible, and don't assume a battery that tests fine at 70°F will perform the same at 0°F — it won't. Block heaters and battery blankets aren't optional in real winter country.
When to Recharge vs. When to Replace
A battery that load tests weak but takes and holds a charge is worth one more chance — recharge it fully and retest under load before writing it off.
Replace when: the battery won't hold a charge overnight, load test fails even after a full charge, there's visible case swelling or leaking, or it's over 3-5 years old and marginal. Don't keep nursing a battery that's on its way out — a weak battery drags down alternator life too, since the alternator works harder trying to keep it charged.
For the alternator, a failed output or load test means replace or rebuild — there's no field fix for worn brushes or a bad diode. Starters are similar: if draw testing shows excessive current or the bench test fails, replace it rather than reinstalling and hoping. Note: any work near the starter or battery cables involves high current — disconnect properly and follow lockout procedures to avoid arc burns.
Quick answers
My truck cranks slow but eventually starts — is that just the battery?
Slow crank points to either a weak battery, a bad ground connection, or a starter with internal wear — you need to test all three, not just assume the battery. Check voltage under load and do a voltage drop test on the grounds before replacing anything.
How do I know if it's the alternator or the battery when the truck won't start again after I jump it?
If it starts with a jump but dies again after driving, that's almost always the alternator not charging — check running voltage at the battery, it should be in the 13.8-14.7V range per OEM spec. If it reads close to resting battery voltage with the engine on, the alternator isn't doing its job.
Can a bad ground really cause a no-start even with a good battery?
Yes, and it's more common than most guys think — a corroded ground strap creates resistance that starves the starter of full power even though the battery tests perfectly fine. Voltage drop testing across the ground connections while cranking will expose this in minutes.
